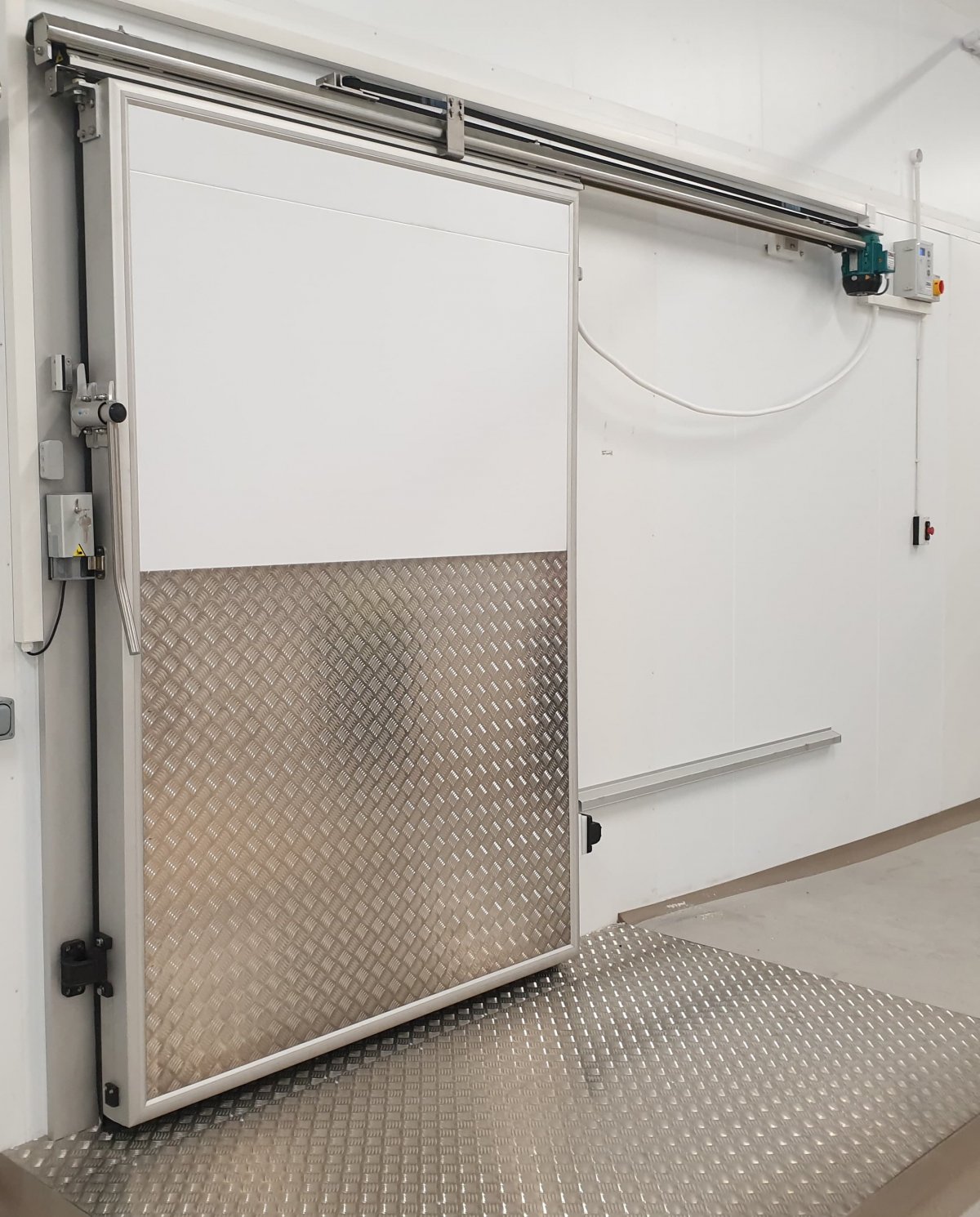

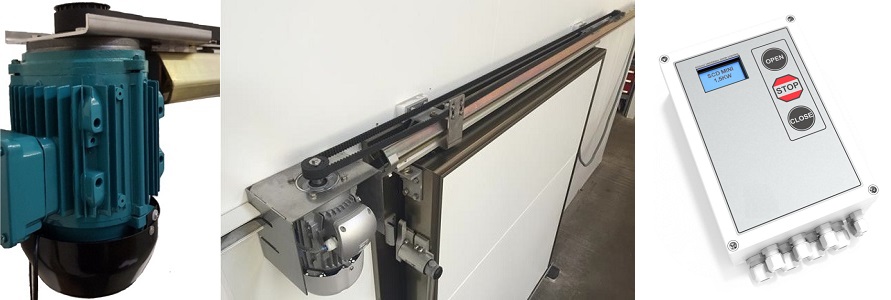

Available for installation to almost every Sliding Door track on the market to date including Fermod Rails. The DNA Universal Auto Kit comes as standard with a state of the art, single phase control panel and motor along with all of the necessary brackets and safety features to fit your sliding door. We can also provide a comprehensive installation manual for you to install this kit on your own, whilst offering support to any point during your self-installation. Easy to install. Easy to operate. Easy to maintain.
Unlike other Automatic Kits for Sliding Doors our kit has no clutch. This means that if the power is off the door leaf can still be moved with ease. This removes a very common problem of other kits where you must manually move the clutch while sliding the door which can be very hard and potentially dangerous.
With many other Automatic Kits there can be restrictions for space when it comes to the motor. With our Universal Kits the motor can be mounted at either end of the track or even above the track with no extra parts needed.
Usage: Suitable for continuous and intensive use.
SPECIFICATION
Dimensions: Recommended to operate Sliding Door leaves up to 4 Metres wide and maximum door leaf weight of 350 kg.
Motor: The Motor can be fitted at either end of the rail or even upside down if there is no room at the end of the rail.
Automatic Control: Supplied with a programmable DNA Products automation unit. The unit is mounted on the wall next to the frame leg on the same side as the door.
Power: As standard the Power Supply is Single Phase 240V.
Opening/Closing Speed: Up to 2.0m/sec.
Control Equipment: 2 push-button panels with emergency stop (standard).
Safety: We supply either a set of Photocells for use vertically on the edge of the door leaf. This prevents collision with objects within the opening. Or we can supply a Photocell Transmitter with Reflector for use across the opening horizontally. This means, while in use, the door will return to its open position if anything should break that beam. The motor has a built-in emergency handle activated in case of power cut. Also available with UPS battery back-up.
Running: The use of an Encoder removes the need for limit switches.
Standard operation: OPEN activated by user. CLOSE activated when time had elapsed on timer. This can be changed so that CLOSE can be activated by user.
Power Cut: In the event of a power cut all settings and limits will be recorded which means the door needs only a simple reference run (detailed in the manual) and the door will continue with all of the original settings. This will save greatly on the cost of call-outs in case of power cuts or the door needing to be switched off.
Furniture: All brackets are Stainless Steel for durability.
Info
Superior Control
Complete with a fully programmable circuit board, the Auto Kit comes with many features which enable it to work in various environments to your exact needs. You can really fine tune the running operations with this circuit board and error codes can help identify damaged parts after a collision. This is not a common feature on Auto Kits supplied by others. The board also has a cycle counter so we can keep track of how often the Kit is used for maintenance purposes.
Opening Options
- Push Buttons
- Pull Cords
- Radars
- Remote Key Fobs
- Induction Loops
- Clearwave - Touchless Entry
Quiet Operation
Our Auto Kit runs using a toothed belt system, so thanks to this it operates smoothly and quietly. No noisy chains or tooth racks with this kit. Only the very best for our customers!
Memory
In the event of a power cut all settings and limits will be recorded which means the door needs only a simple reference run (detailed in the manual) and the door will continue with all the original settings. This will save greatly on the cost of call-outs in case of power cuts or the door needing to be switched off.
Uniformity
All of our Auto-Kits use the same parts and brackets and equipment, so replacement parts are always stocked and available off the shelf.
Reduced Install Times
Over the years we have refined and modified our brackets and program when meeting obstacles when fitting to unfamiliar models of Sliding door. Some of the brackets can mount to the wall instead of the rail making this a truly Universal Auto-Kit. Due to these upgrades the Kit can be installed much easier and much quicker.
