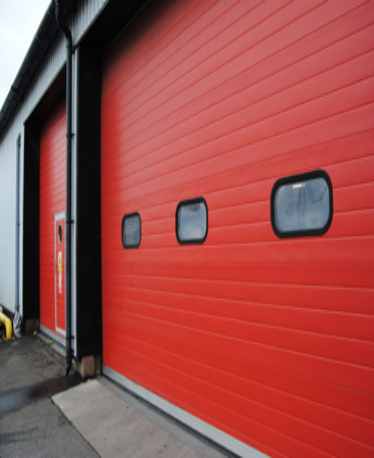

When space is restricted or there is no room for a Roller Shutter these vertically opening doors are a great solution to your needs.
This type of door also offers extra insulation and soundproofing to any opening. Weather seals ensure that all doors are long lasting when used outdoors.
Panels
Kingspan 610mm x 40mm thick FIREsafe composite panels manufactured using 0.5mm thick hot dipped zinc coated (to BS EN 10147) steel internal and external facing sheets, each with a class 1 surface spread of flame when tested to BS 476: Part 7:1971.
These sheets are bonded together using IPU foam, which has a density of 40ks/m3.
The panel itself gives a “U” value 0.51 W/m2 K, meaning that typical 5,000 x 5,000 wide door has a “U” value of 0.9 W/m2 K and has formed tongue and grooved hinged joint, incorporating a neoprene seal running the full length of the panel to give excellent weather resistance.
80mm panel also available has a typical “U” value of 0.24 W/m2 K, meaning that a typical 5,000 x 5,000 wide door has a “U” value of 0.54 W/m2 K.
Incorporates a standard V-grooved pattern to both internal and external
Kingspan 610mm x 40mm thick FIREsafe composite panels manufactured using 0.5mm thick hot dipped zinc coated (to BS EN 10147) steel internal and external facing sheets, each with a class 1 surface spread of flame when tested to BS 476: Part 7:1971.
These sheets are bonded together using IPU foam, which has a density of 40ks/m3.
The panel itself gives a “U” value 0.51 W/m2 K, meaning that typical 5,000 x 5,000 wide door has a “U” value of 0.9 W/m2 K and has formed tongue and grooved hinged joint, incorporating a neoprene seal running the full length of the panel to give excellent weather resistance.
80mm panel also available has a typical “U” value of 0.24 W/m2 K, meaning that a typical 5,000 x 5,000 wide door has a “U” value of 0.54 W/m2 K.
The acoustic value of the door panel has a single weighted sound reduction of [RW] of 25db. Standard stucco finish is embossed primer coated to both faces.
Panel Design
Incorporates a standard V-grooved pattern to both internal and external
faces.
Panel Hardware
The roller carriers are adjustable and along with the intermediate panel hinges, are hot dipped galvanized steel. The rollers which run in the side-track are sealed for life, self-lubricating bearings c/w a nylon tyre to give smooth and quiet operation and sealed directly to the seal connected to the side fixing angle. This is also pre-drilled.
Panel Options
Kingspan Plastisol XL200 or polyester coating to the external face an extensive range of colours. Internal RAL 9010. Factory paint finish to either internal or external face to any BS or RAL colour.
Panel Finishes External
25 Micron, Stucco Embossed, Thermosetting Polyester Paint or Kingspan XL Forte – 200 Micron, Leather-grain embossed thermoplastic paint with excellent abrasion resistance.
Panel Finish Internal
25 Micron, Stucco Embossed, Thermosetting Polyester Paint in RAL Bright White RAL 9010
Standard External Colours

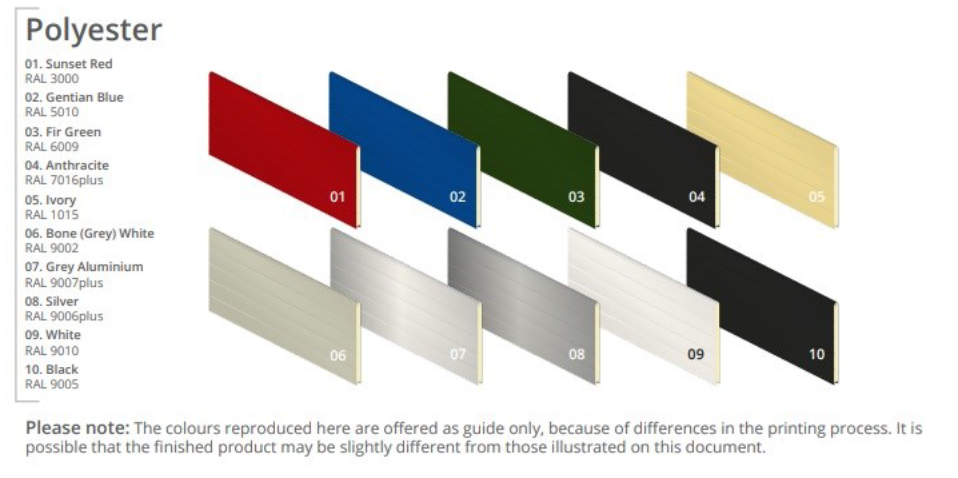

Polyester Range
Ivory RAL1015, Yellow RAL 1021, Sunset Red RAL 3000, Gentian Blue RAL 5010, Green RAL 6005, Silver RAL 9006+, Anthracite RAL 7016+, Fir Green RAL 6009, Grey Aluminium RAL 9007+, Sepia Brown RAL 8019, Bone White RAL 9002, White RAL 9010 -

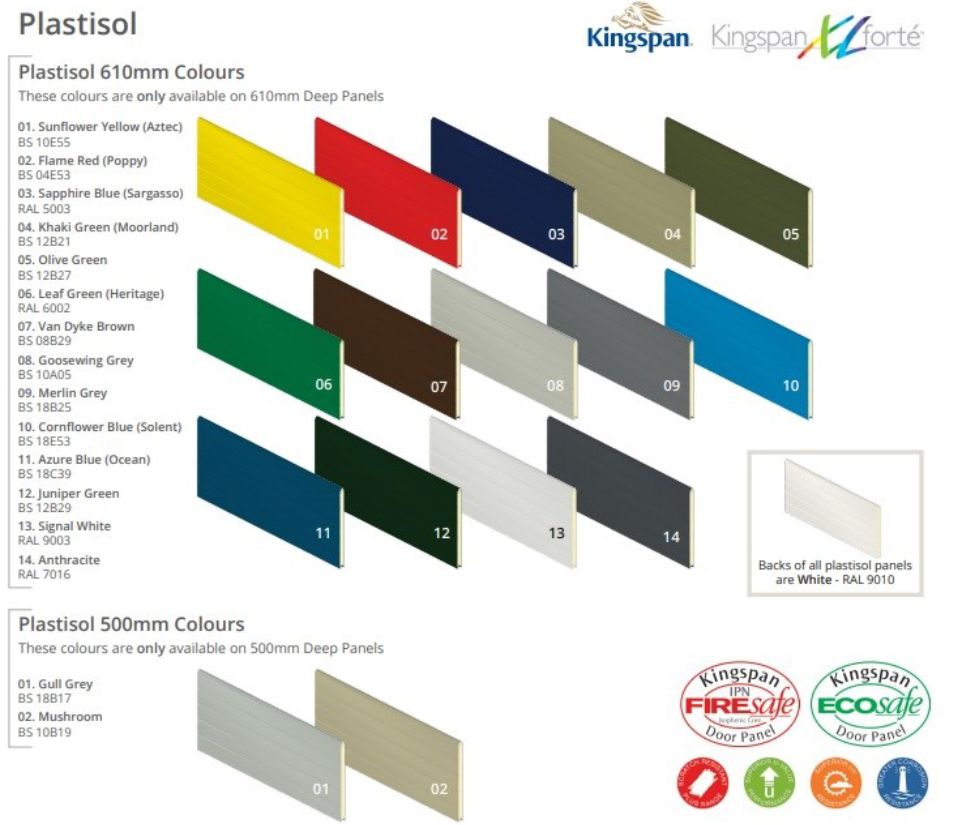

Plastisol Range
Goosewing Grey BS 10A05, Merlin Grey BS 18B25, Gull Grey BS 18B17, Azure Blue BS 18C39, Olive Green BS 12B27, Khaki Green BS 12B21, Van Dyke Brown BS 08B29, Sapphire Blue RAL 5003, Leaf Green RAL 6002, Flame Red BS 04E53, Cornflower Blue BS 18E53, Sunflower Yellow BS 10E55
Goosewing Grey BS 10A05, Merlin Grey BS 18B25, Gull Grey BS 18B17, Azure Blue BS 18C39, Olive Green BS 12B27, Khaki Green BS 12B21, Van Dyke Brown BS 08B29, Sapphire Blue RAL 5003, Leaf Green RAL 6002, Flame Red BS 04E53, Cornflower Blue BS 18E53, Sunflower Yellow BS 10E55
Door Head Gear
Sectional doors are counterbalanced to ensure the smooth running of doors. Using minimal effort. All counterbalance spring calculations are designed to get the maximum life out of the door springs we manufacture (most typical loading docks are calculated to a minimum of 20,000 cycles). The springs are high tensile helical wound steel.
Shot blasted for improved performance. The springs are mounted on a steel shaft supported by bearing brackets incorporating sealed bearing rollers, to ensure
free running of the shaft. Also mounted on the spring shaft are the cable drums. These carry the aircraft quality cables, which have 7:1 safety factor.
These are looped and swaged using a hydraulic press to ensure the cables do not get detached from the cable drums or the brackets which
connect the cables to the bottom of the door panels. Spring break devices and cable breaks are fitted to doors as standard
to comply with CE markings.
Info
Guide Tracks
The door tracks are galvanized steel ‘J’ type (designed to give free and easy running for bearing rollers). These are mounted on a galvanized steel jamb angle for fixing purposes via Indupart’s unique stud welding system which ensures the most effective seal to the building as the tracks need no adjustment on site. Cable break devices are fitted to all doors to comply with CE markings, we also offer an optional anti lift bracket.
Guide Track Options
Guide tracks are individually manufactured to suit site conditions, taking into consideration door size, headroom and roof pitch, see ‘installation clearance’s’ section for details.
Seals
Epdm Perimeter Seals. Our Sectional Doors are fully perimeter sealed, as well as the intermediate panel seals, to provide the most effective weather seal to your door.
All fixing faces, floors and lintels must be flush and square.
Operation
A range of manual and automatic operations are available (GFA Operators which include emergency chain override in the event of a power failure), including a large number of safety features as options.
Other Options

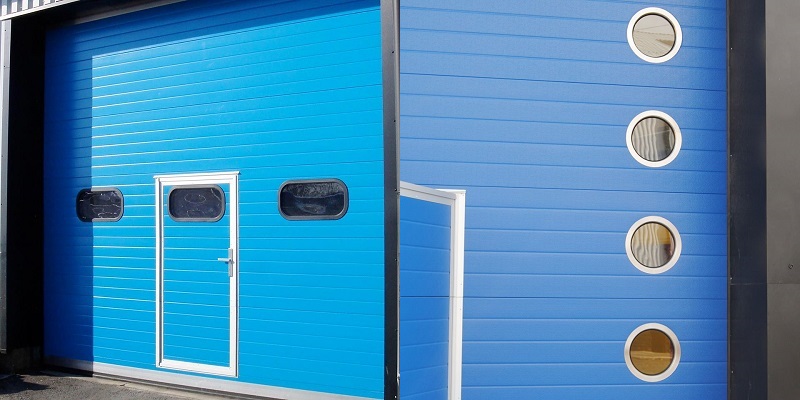

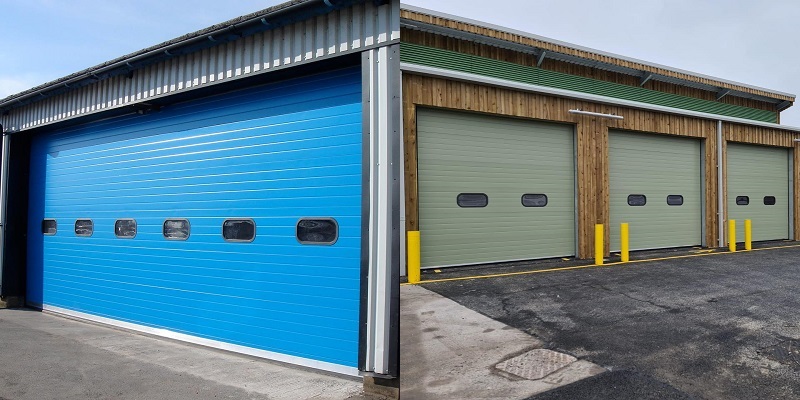

As you would expect, we also offer a massive range of optional extras, including but not limited to, double-glazed windows, integral personnel doors in main door and door safety furniture.
Applications
Designed for industrial applications.
Performance
Doors to comply with BS EN 13241-1:2003 + A1 : 2011 Mechanical Aspects – PASS (BS EN 12604) Requirements for safety in use of power operated doors – PASS (BS EN 12453)
With 3rd Party Certification by recognized testing authority.
Wind Pressure – CLASS 3 (BS EN 12424) – Doors to achieve higher wind load classes are available on request
Manual Opening Force –PASS
Water Penetration – CLASS 3 (BS EN 12425)
Air Permeability – CLASS 2 (BS EN 12426) offering an air tightness of 12m3/m2h at a pressure of 50Pa
Air Leakage –Class 3
CE Marked with Manufacturers declaration of conformity.
