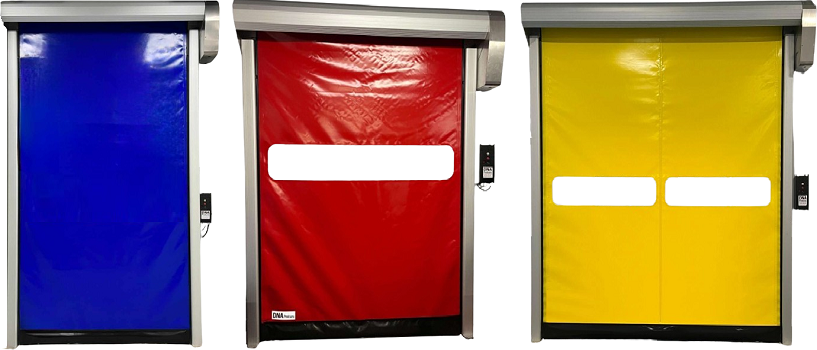

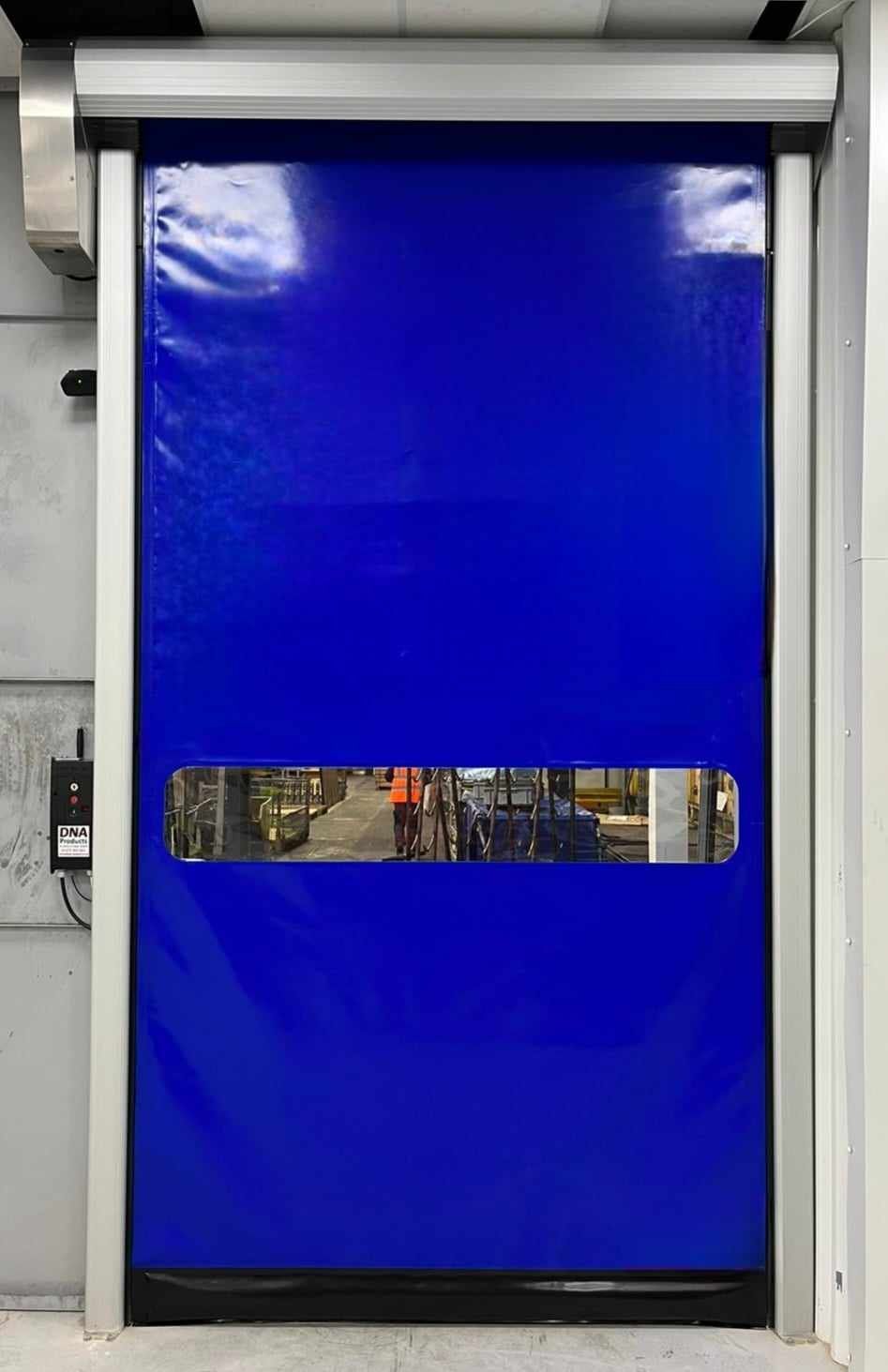

High-Speed Door - ZipSpeed

Our ZipSpeed is a self-repairing roll up door equipped
with zips on the curtain allowing for very high wind resistance
The DNA Products ZipSpeed is a fast action High-Speed door engineered to operate intensively at high frequency, many times a day. The curtain is rolled up around an aluminium shaft, travelling over high quality bearings, with the aim of reducing wear and tear and increasing durability.

It is a self-repairing roll up door designed for different kinds of applications, both internal and external, allowing constant flow of traffic and assuring high safety. Thanks to the non-rigid curtains and the sliding self-repair system if a collision occurs the curtain leaves the guide to prevent damage.

Once the door is in the open position it will begin to close and automatically reinsert itself. This can save on down time as the door will not require resetting after a curtain impact. This system also creates a strong seal in the frame leg and gives the door a high resistance to wind.

The ZipSpeed has a very high resistance to the wind (suitable for placing in places with air currents), high air permeability (areas with air pressure) and can be made to suit large size openings (vehicle access areas). This makes it the ideal solution for external openings on Storage

Specification:

  • Opening Speed: 2.5m/sec.
  • Closing Speed: 0.8m/sec.
  • Motor: The Motor can be supplied for left or right-hand operation depending on where the door is being installed.
  • Size: Widths from 1200mm (w) to 6000mm (w) Heights from 2200mm (h) to 6000mm (h)
  • Safety: CE Mark in compliance with all the requirements of the European EN13241-1:2003 safety standard for preventing accidents and minimizing damage. Emergency stops on both sides. Active light curtain 2500mm high that stop the door from closing if a person or vehicle is detected.
  • Structure: Self-supporting.
  • Power:  As standard the Power supply is Single Phase 230V ac-50/60 Hz.   For an extra cost 3 Phase 400V can be supplied.
  • Curtain: 1mm Thick PVC 950g/m2.
  • Opening device: 1no additional Push Button supplied as standard.
  • Application: Internal or External
  • Material: The Frame, Canopy and Motor Cover are made from Anodised Aluminium.
  • Efficiency: All High-Speed Doors will optimise logistics, eliminate draughts and heat loss and will reduce dust and noise pollution.
  • Usage: Suitable for continuous and intensive use.
  • Vision: One row of rounded rectangular panels are supplied as standard. 1430mm from ground. More vision panels are available upon request.

Available Colours:

Info

Think safe

All doors are supplied with a crank handle for use in case of a power cut. A stop is activated for safety purposes, so the door cannot be used while the handle is in place.
Time saving

Installation is quick and easy as the Motor, Control Panel and Encoder cables are pre-wired into plugs for fast and simple connection on site.
Applications

  • Heavy & Light Industries
  • Steel and Iron Industries
  • Engineering Industries
  • Chemical Industries
  • Food Processing Industries
  • Textile Industries
Opening Options

  • Induction Loop Inside/Outside ? Included: 100mts flexible cable 1 mm thickness
  • Radars Inside/Outside
  • Pull Cord Inside/Outside Support and 5m cord included
  • Remote Controls/Receivers
  • Clearwave - Non-touch opening device for hygienic areas
Signal Options

  • Safety Light
  • Safety Light with Sound
  • Traffic lights
