Anodizing increases resistance to corrosion and wear and provides better adhesion for paint primers and glues than bare metal does.

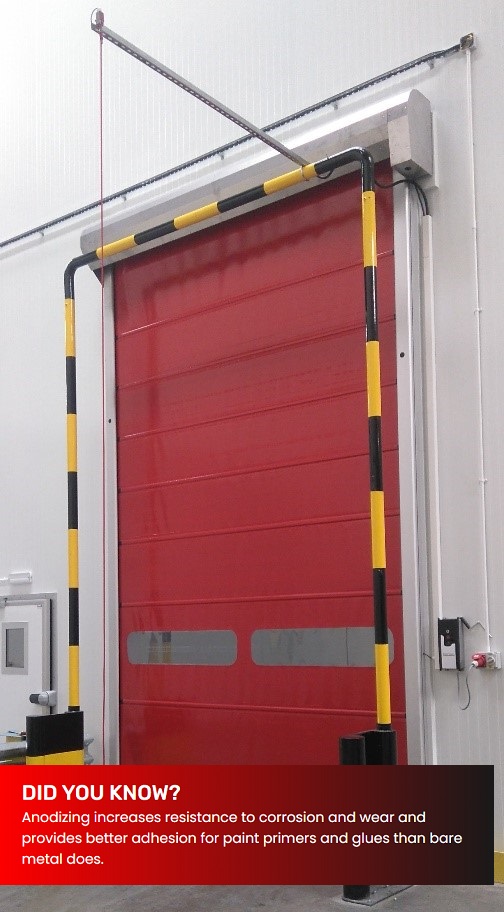

The DNA Products RollSpeed is a fast action High-Speed door engineered to operate intensively at high frequency, many times a day. The curtain is rolled up around an aluminium shaft, travelling over high quality bearings, with the aim of reducing wear and tear and increasing durability.
The DNA Products RollSpeed is a fast action High-Speed door engineered to operate intensively at high frequency, many times a day. The curtain is rolled up around an aluminium shaft, travelling over high quality bearings, with the aim of reducing wear and tear and increasing durability.
Specification:
- Opening Speed: 0.9m/sec.
- Closing Speed: 0.9m/sec.
- Motor: The Motor can be supplied for left or right-hand operation depending on where the door is being installed.
- Size: Widths from 1200mm (w) to 4000mm (w) Heights from 2200mm (h) to 4000mm (h)
- Safety: CE Mark in compliance with all the requirements of the European EN13241-1:2003 safety standard for preventing accidents and minimizing damage. Emergency stops on both sides. Active light curtain 2500mm high that stop the door from closing if a person or vehicle is detected.
- Structure: Self-supporting.
- Power: As standard the Power Supply is 3 Phase 400V 16 Amp. For an extra cost Single Phase 240V can be supplied.
- Curtain: 1mm Thick PVC 950g/m2.
- Opening device: 1no additional Push Button supplied as standard.
- Application: Internal as standard. External available with added wind resistance.
- Material: The Frame, Canopy and Motor Cover are made from Anodised Aluminium.
- Efficiency: All High-Speed Doors will optimise logistics, eliminate draughts and heat loss and will reduce dust and noise pollution.
- Usage: Suitable for continuous and intensive use.
- Vision: One row of rounded rectangular panels are supplied as standard. 1430mm from ground. More vision panels are available upon request.
- Customisation: Silk screen printing, digital prints and logos on curtains are available upon request.
Available Colours:
Info
Think safe
Time saving
Applications
- Heavy & Light Industries
- Steel and Iron Industries
- Engineering Industries
- Chemical Industries
- Food Processing Industries
- Textile Industries
Opening Options
- Induction Loop Inside/Outside ? Included: 100mts flexible cable 1 mm thickness
- Radars Inside/Outside
- Pull Cord Inside/Outside Support and 5m cord included
- Remote Controls/Receivers
- Clearwave - Non-touch opening device for hygienic areas
Signal Options
- Safety Light
- Safety Light with Sound
- Traffic lights
Model Options
- ROLLSPEED S
- Standard Rollspeed Door
- Stainless Steel Frame
- Stainless Steel Canopy & Motor Cover
- ROLLSPEED S
- Standard Rollspeed Door
- Stainless Steel Frame
- Stainless Steel Canopy & Motor Cover
