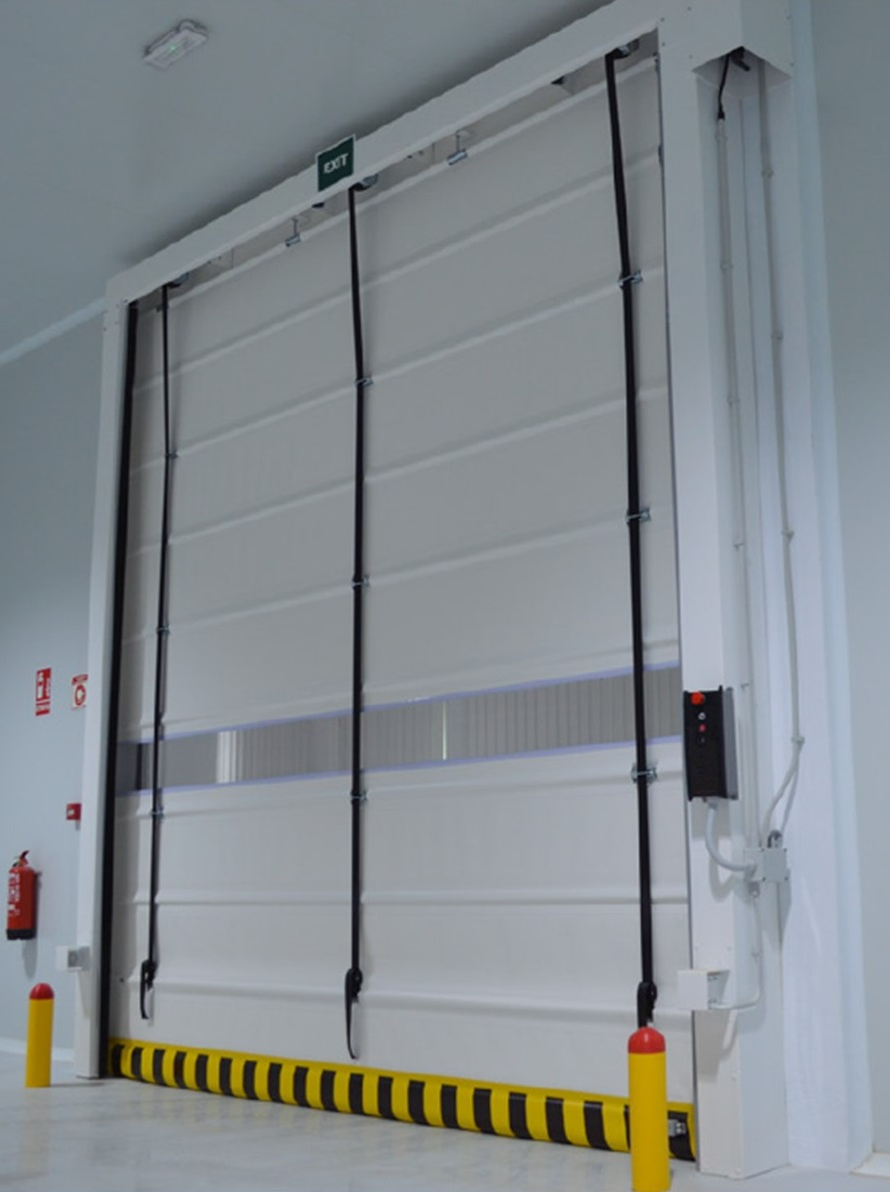

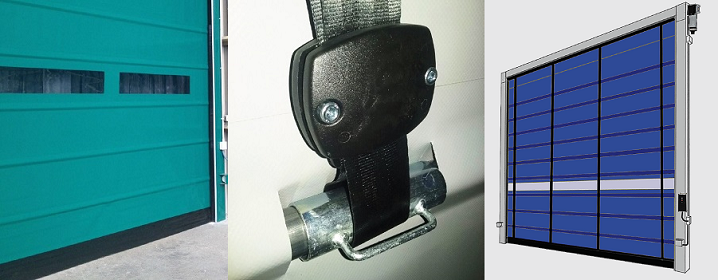

The DNA Products FoldSpeed is a fast action High-Speed door engineered to operate intensively at high frequency, many times a day. The door is lifted by high-quality lifting belt straps. The vertical Sliding Rails are equipped with brushes which helps to guide the curtain and increase its durability. This also creates a seal, reducing the chances of contaminants. The curtain has a completely flexible black bottom to prevent damage if impacted and it also allows the door to be perfectly flush with the ground, even if the surface is irregular.
It has been carefully designed for larger openings in extreme industrial environments. With its high wind rating of up to Class 3 it is ideal for speeding up the movement of goods and vehicles between the outside and the inside of the facilities while also offering protection from adverse weather conditions.
This means that the FoldSpeed door is ideal for external openings on Storage Warehouses, Workshops, Hangers, Shipyards, or Factories where it is necessary to make large logistical movements.
Specification:
- Opening Speed: 0.6m/sec
- Motor: The Motor can be supplied for left or right-hand operation depending on where the door is being installed.
- Size: From 8000mm (w) to 8000mm (h)
- Safety: CE Mark in compliance with all the requirements of the European EN13241-1:2004 + A1: 2011 safety standard for preventing accidents and minimizing damage.
- Structure: Not Self-supporting.
- Power: As standard the Power Supply is 3 Phase 400V 16 Amp.
- Curtain: 1mm Thick PVC 950g/m2.
- Opening device: 1no additional Push Button supplied as standard.
- Application: Internal as standard. External available with added wind resistance.
- Material: The Frame, Canopy and Motor Cover are made from Lacquered Galvanised Steel.
- Efficiency: All High-Speed Doors will optimise logistics, eliminate draughts and heat loss and will reduce dust and noise pollution.
- Usage: Suitable for continuous and intensive use.
- Vision: One horizontal vison panel supplied as standard. 1430mm from ground. More vision panels are available upon request.
Available Colours:

Info
Think safe
Time saving
Applications
- Heavy & Light Industries
- Steel and Iron Industries
- Engineering Industries
- Chemical Industries
- Food Processing Industries
- Textile Industries
Opening Options
- Induction Loop Inside/Outside ? Included: 100mts flexible cable 1 mm thickness
- Radars Inside/Outside
- Pull Cord Inside/Outside Support and 5m cord included
- Remote Controls/Receivers
- Clearwave - Non-touch opening device for hygienic areas
Signal Options
- Safety Light
- Safety Light with Sound
- Traffic lights
